The NVLink Tax: Why PCIe-Based H100 Clusters Are ROI Suicide for Training

Building a private H100 cluster for 70B+ parameter model training sounds straightforward until you watch $2 million in GPUs sit idle, waiting for data that PCIe simply cannot deliver fast enough. The paper math looks pristine: PCIe Gen5 x16 slots promise 128 GB/s, more than enough bandwidth for most workloads. But in the trenches of distributed training, that bandwidth evaporates the moment All-Reduce operations start hammering your interconnect.

A recent cluster build documented on Reddit revealed what infrastructure architects are learning the hard way: the “NVLink tax” isn’t optional for training, it’s the difference between a functional supercomputer and a very expensive space heater.

The Bandwidth Massacre: When 128 GB/s Becomes Zero

The theoretical numbers paint a grim picture. PCIe Gen5 x16 caps at approximately 128 GB/s bidirectional bandwidth. NVLink 4 on the H100 pushes 900 GB/s. That’s not a 2x or 3x difference, it’s a 7x chasm that widens to 14x with Blackwell’s NVLink 5 delivering 1.8 TB/s per GPU.

But raw bandwidth tells only half the story. During distributed training, GPUs constantly synchronize gradients through All-Reduce operations. With PCIe-based servers, that synchronization becomes a traffic jam. The Reddit poster’s empirical testing showed GPUs hitting zero utilization spikes while waiting for interconnect, turning expensive hardware into idle silicon.

The evolution of NVLink makes PCIe look increasingly anemic:

NVLink’s fifth generation achieves 12 times the bandwidth of its 2014 predecessor. Meanwhile, PCIe has only managed a 2x generational improvement. The gap isn’t closing, it’s becoming a canyon.

The Storage Tsunami Nobody Warns You About

Here’s what caught even experienced engineers off guard: checkpoint writes. A 175B parameter model dumps approximately 2.5 TB per checkpoint. To prevent GPU stalls, that data must land on persistent storage in under a minute. Standard NFS filers crumble under this assault.

The Reddit builder discovered that benchmarking dataset read throughput is meaningless if you ignore write bursts. Their cluster required either parallel filesystems (Weka, VAST) or local NVMe RAID arrays just to survive checkpoint operations. The storage controller became the silent killer, GPUs dropping to zero TFLOPS because the filesystem couldn’t absorb the data firehose.

This is why extreme-scale local GPU workstations are gaining traction among researchers who can’t afford the infrastructure complexity. When you can’t solve the storage problem at scale, sometimes the answer is to keep it local.

Networking: When Ethernet Becomes a Full-Time Job

The cluster builder skipped InfiniBand due to budget and staffing constraints, opting for RoCEv2 on standard switches. It worked, technically. But the operational burden was brutal.

One silent buffer overflow or misconfigured Priority Flow Control (PFC) setting could stall the entire cluster. The team had to monitor pause frames religiously. As one commenter noted, “Everyone obsesses over TFLOPS and forgets they drop to zero if the storage controller chokes.”

The debate between InfiniBand and Ethernet rages on. InfiniBand advocates point to its simplicity: RDMA is built-in, no PFC/ECN complexity, fully switched fabric optimized for AI workloads. Mellanox offers free training with associate certifications completable in two days. The protocol was designed for exactly this synchronous, high-performance computing scenario.

Ethernet proponents counter that 400G/800G fabrics with DCQCN handle multi-thousand-GPU training effectively. NVIDIA’s Spectrum-X brings InfiniBand-style congestion control to Ethernet, achieving 95% data throughput with zero application latency degradation versus 60% on standard Ethernet.

The hierarchy is clear: NVLink for scale-up (intra-rack), InfiniBand/Ethernet for scale-out (inter-rack). The GB200 NVL72 system exemplifies this with 800 Gb/s RDMA NICs per GPU tray for inter-rack communication, while NVLink handles the 130 TB/s aggregate bandwidth within the rack.

The Kubernetes Complexity Tax

Deploying Multi-Node NVLink (MNNVL) systems isn’t plug-and-play. Standard Kubernetes doesn’t recognize NVIDIA’s MNNVL architecture, requiring:

• Kubernetes 1.32 or later
• NVIDIA GPU Operator 25.3+ with Dynamic Resource Allocation (DRA) driver
• NVIDIA Network Operator for fabric configuration
• IMEX service for GPU memory export/import across OS domains
• ComputeDomain Custom Resource Definitions for NVLink domain management

The platform must create topology-aware pod affinity rules using nvidia.com/gpu.clique as the topology key. Without this, pods land on nodes without NVLink interconnects, silently destroying performance.

This is where NVIDIA’s evolving GPU ecosystem and developer hardware strategies become relevant. The DGX Spark, despite its controversies, represents an attempt to abstract away this complexity for smaller teams.

The ROI Math That Kills PCIe Dreams

Let’s run the numbers. An H100 SXM5 server with NVLink costs roughly 30% more than its PCIe equivalent. But during training, the PCIe cluster achieves maybe 60-70% effective GPU utilization due to interconnect stalls, while NVLink clusters sustain 90%+.

On a $2M deployment, that 20-30% utilization gap represents $400K-$600K in wasted compute. The “cheaper” PCIe option becomes catastrophically expensive.

The GB200 NVL72 illustrates the extreme end: 72 GPUs as a single domain with 130 TB/s aggregate bandwidth. No GPU-to-GPU connectivity exists within compute trays, all communication routes through external NVSwitch fabric. This makes all 72 GPUs equivalent from a connectivity perspective, eliminating performance variability.

Scale-up networking delivers approximately 18x the bandwidth of scale-out networking within a rack. For trillion-parameter models requiring tensor parallelism across dozens of GPUs, this isn’t a luxury, it’s oxygen.

The Future: When Even NVLink Isn’t Enough

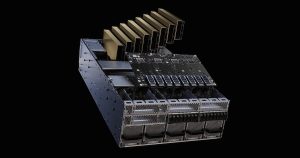

The industry is already moving beyond traditional GPU interconnects. NVIDIA’s strategic shift away from NVLink in favor of high-speed networking with the RTX PRO 6000 suggests a future where even NVLink’s terabytes per second give way to 400G+ Ethernet fabrics.

Meanwhile, alternative scaling architectures challenging traditional GPU interconnects like Cerebras’ wafer-scale approach eliminate the interconnect problem entirely by keeping everything on one massive piece of silicon.

For now, the hierarchy holds: NVLink for scale-up, InfiniBand/Ethernet for scale-out. But the “NVLink tax” is better framed as insurance against ROI catastrophe. Skimping on interconnect to save 30% on hardware costs is like buying a Ferrari and putting bicycle tires on it, you’ve neutered the performance you paid for.

Hard Lessons for Infrastructure Architects

1. Benchmark your entire pipeline, not just GPU kernels. The Reddit builder’s mistake was modeling All-Reduce without accounting for real-world congestion patterns.

2. Storage is not an afterthought. That 2.5 TB checkpoint write will murder your NFS filer. Budget for parallel filesystems or local NVMe pools.

3. Networking expertise is mandatory. RoCEv2 works, but it demands constant monitoring. InfiniBand is simpler operationally if you can afford the knowledge transfer.

4. Kubernetes complexity scales with hardware capability. MNNVL requires specialized operators and CRDs. Don’t expect standard GPU nodes to just work.

5. The 30% upfront savings on PCIe evaporates in the first training run. When your GPUs idle at 40% waiting for data, you’ve already lost more money than NVLink would have cost.

The NVLink tax isn’t a tax, it’s the admission price for making your GPUs actually work for a living. For inference, PCIe remains perfectly viable. But for training, skipping NVLink transforms your cluster from a research instrument into a very expensive lesson in interconnect economics.

Next Steps: If you’re planning a training cluster, start with the storage and networking requirements, then work backward to GPU selection. The hardware specs that look good on paper often hide the real bottlenecks that determine whether your $2M investment produces breakthroughs or just very expensive heat.
